+ Built-in data hold function: This function allows you to easily hold and read measured values even after disconnecting the measurement leads. This ensures accurate and reliable measurements.+ High accuracy with 2000 counts: This multimeter offers high accuracy in measuring various electrical values such as voltage (volts) and resistance (ohms).+ Safe electrical measurements: The instrument complies with safety category CAT III 600 V for increased safety.+ Manual range setting.+ Automatic switch-off: The multimeter is automatically switched off when not in use.- Backlight: A large backlit display ensures good readability even in poor lighting conditions. Specifications
| Product basic info |
|---|
| Primary colours | Red |
| Additional colours | Grey |
| Depth unit | 47 mm |
| Height unit | 133 mm |
| Width unit | 71 mm |
| Weight unit | 190 g |
| Material | ABS |
| Physical properties |
|---|
| Cable length | 1 m |
| Display height | 21 mm |
| Display width | 40 mm |
| Display type | LCD |
| Backlight | |
| Maximum digits display | 2000 |
| Electrical data |
|---|
| AC current | basic accuracy:±(1.5%+3) |
| AC voltage | basic accuracy:±(0.8%+5) |
| Audible continuity measurement | |
| Automatic polarity indication | |
| DC current | basic accuracy:±(1.2%+5) |
| DC voltage | basic accuracy:±(0.8%+5) |
| Diode test | |
| Fuse type | F 0.20 A / 600 V, 5 x 20 mm, F 10 A / 600 V, 5 x 20 mm |
| Continuity test | |
| Out of range indication | |
| Transistor test | |
| True rms | |
| AC voltage measurements | 200 V, 600 V |
| DC current measurements | 10 A, 2 mA, 20 mA, 200 µA, 200 mA |
| DC voltage measurements | 2 V, 20 V, 200 mV, 200 V, 600 V |
| Resistance measurements | 2 kOhm, 20 kOhm, 20 MOhm, 200 kOhm, 200 MOhm, 200 Ohm |
| Resistance specifications | basic accurancy:±(1.2%+5) |
| Technical data |
|---|
| Safety rating | Cat III / 600 V |
| Automatic power-off function | |
| Data-hold function | |
| Relative value measurement | |
| Remote voltage test | |
| Environmental data |
|---|
| IP rating | IPx0 |
| Usage location | Indoor only |
| Operational properties |
|---|
| Range setting | Manual |
| Power supply |
|---|
| Batteries included | |
| Number of batteries | 2 |
| Low battery indicator | |
| Battery IEC size | AAA (LR03, R03, FR03, HR03, KR03, ZR03 ,24A, 24D, 24LF, UM4, Micro, MN2400, MX2400, MV2400) |
| Included |
|---|
| with LED light | |
| Set contents | - silicone sleeve

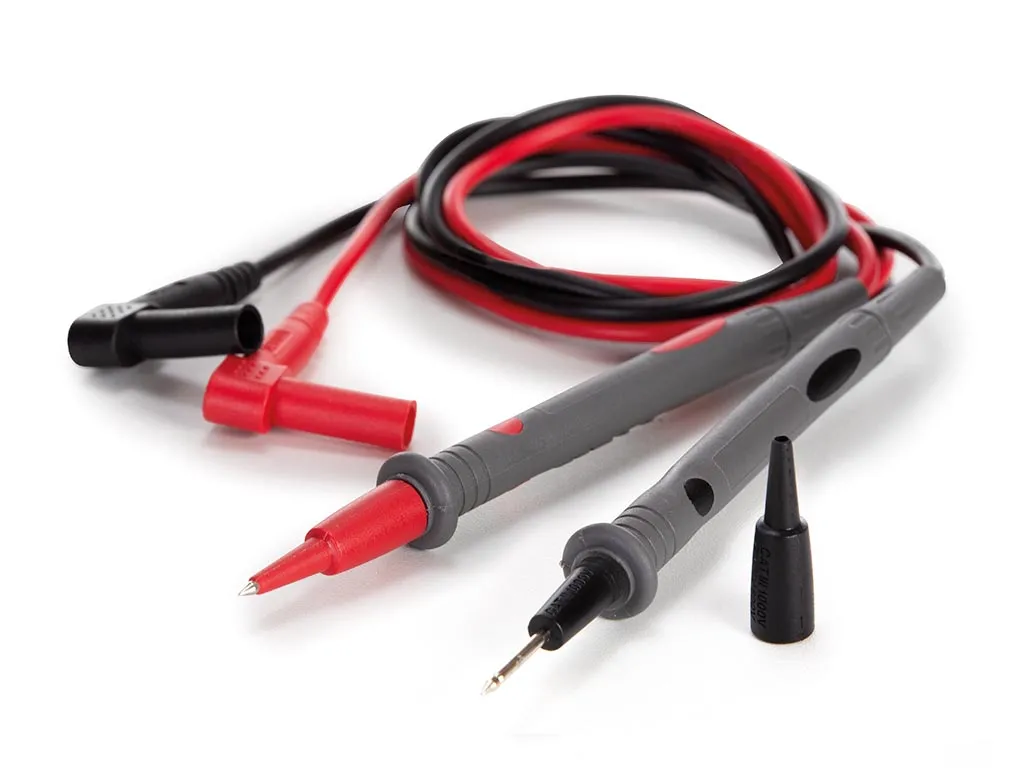

- TLM80:Test lead set - CAT III 1000 V / CAT IV 600V - length 100 cm
|
